Product Summary

The AD9764ARUZ is a 14-bit, 125 MSPS TxDAC D/A converter. The AD9764ARUZ is the 14-bit resolution member of the TxDAC series of high performance, low power CMOS digital-to-analog converters (DACs). The AD9764ARUZ which consists of pin compatible 8-, 10-, 12-, and 14-bit DACs, is specifically optimized for the transmit signal path of communication systems. The AD9764ARUZ shares the same interface options, small outline package and pinout, providing an upward or downward component selection path based on performance, resolution and cost.

Parametrics

AD9764ARUZ absolute maximum ratings: (1)Temperature Range: -40 to +85℃; (2)AVDD: -0.3 to +6.5V; (3)DVDD: -0.3 to +6.5V; (4)ACOM: -0.3 to +0.3V; (5)AVDD: -6.5 to +6.5V; (6)Junction Temperature: +150℃; (7)Storage Temperature: –65 +150℃; (8)Lead Temperature(10 sec): +300℃.

Features

AD9764ARUZ features: (1)Member of Pin-Compatible TxDAC Product Family; (2)125 MSPS Update Rate; (3)14-Bit Resolution; (4)Excellent SFDR and IMD; (5)Differential Current Outputs: 2 mA to 20 mA; (6)Power Dissipation: 190 mW @ 5 V to 45 mW @ 3 V; (7)Power-Down Mode: 25 mW @ 5 V; (8)On-Chip 1.20 V Reference; (9)Single +5 V or +3 V Supply Operation; (10)Packages: 28-Lead SOIC and TSSOP; (11)Edge-Triggered Latches.

Diagrams

AD9764ARUZ functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

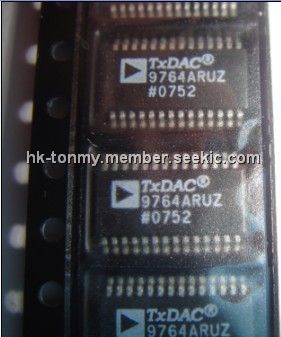

AD9764ARUZ
AD9764ARUZ

IC DAC 14BIT 125MSPS 28-TSSOP
Data Sheet
0-1: $9.66
1-10: $8.78
10-25: $8.12
25-100: $7.46
100-250: $6.80
250-500: $6.37
500-1000: $5.85
AD9764ARUZRL7
AD9764ARUZRL7

IC DAC 14BIT 125MSPS 28-TSSOP
Data Sheet
0-1000: $5.85
AD9764ARUZ-RL7
AD9764ARUZ-RL7
Other

Data Sheet
Negotiable
