Product Summary
The MAX202ECSE+T is a 15kV ESD-protected, 5V RS-232 transceiver. The MAX202ECSE+T line driver/receiver is designed for RS-232 and V.28 communications in harsh environments. Each transmitter output and receiver input is protected against ±15kV electrostatic discharge (ESD) shocks, without latchup. The various combinations of features are outlined in the Selector Guide. The driver and receiver of the MAX202ECSE+T for all ten devices meet all EIA/TIA-232E and CCITT V.28 specifications at data rates up to 120kbps, when loaded in accordance with the EIA/TIA-232E specification.
Parametrics
MAX202ECSE+T absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)V+: (VCC - 0.3V) to +14V; (3)V-: -14V to +0.3V; (4)Input Voltages T_IN: -0.3V to (V+ + 0.3V); (5)R_IN: ±30V; (6)Output Voltages T_OUT: (V- - 0.3V) to (V+ + 0.3V); (7)R_OUT: -0.3V to (VCC + 0.3V); (8)Operating Temperature Ranges: -40℃ to +85℃; (9)Storage Temperature Range: -65℃ to +165℃; (10)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX202ECSE+T features: (1)Low-Voltage. 1μA Supply Current, True +3V to +5.5V RS-232 Transceivers with Auto-Shutdown; (2)Low-Power. ±15kV ESD-Protected Down to 10nA, +3.0V to +5.5V, Up to 1Mbps, True RS-232 Transceivers; (3)Low-Voltage or Data Cable. 15kV ESD-Protected, 1μA, 250kbps, +3.0V/+5.5V, Dual RS-232 Transceivers with Internal Capacitors.

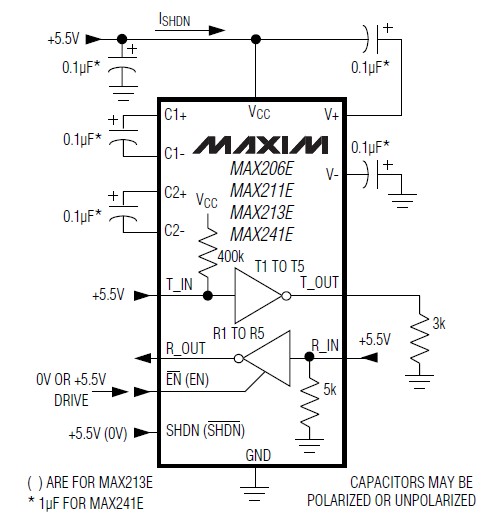

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX202ECSE+T |
Maxim Integrated Products |
RS-232 Interface IC 15kV ESD-Protected 5V RS232 Transceiver |
Data Sheet |
|
|
||||||||
 |
MAX202ECSE+TG068 |
Maxim Integrated Products |
RS-232 Interface IC 15kV ESD-Protected 5V RS232 Transceiver |
Data Sheet |
|
|
||||||||
