Product Summary
The TLE7209-2R is an intelligent full H-Bridge, designed for the control of DC and stepper motors in safety critical applications and under extreme environmental conditions. The H-Bridge TLE7209-2R is protected against over-temperature and short circuits and has an under voltage lockout for all the supply voltages “VS” (main DC power supply). All malfunctions of the TLE7209-2R cause the output stages to go tristate.
Parametrics
TLE7209-2R absolute maximum ratings: (1)Junction temperature Tj: -40 +150 ℃; (2)Storage temperature Ts: -55 +125 ℃; (3)Ambient temperature Ta: -40 +125 ℃; (4)Supply voltage VS: -1 40 V; (5)Voltage at logic inputs: -0.5 18 V; (6)Voltage at logic input CSN: -0.5 40 V; (7)Voltage at logic input DMS and logic output SDO: -0.5 13 V.
Features
TLE7209-2R features: (1)Output current limitation at typ. 6.6 A ±1.1 A; (2)Short circuit shut-down for output currents over 8 A; (3)Logic- inputs TTL/CMOS-compatible; (4)Output switching frequency up to 30 kHz; (5)Rise and fall times optimized for 0.5-2 kHz; (6)Over-temperature protection; (7)Short circuit protection; (8)Undervoltage disable function; (9)Diagnostic by SPI or Status-Flag (configurable); (10)Enable and Disable input; (11)P-DSO-20-12 power package.

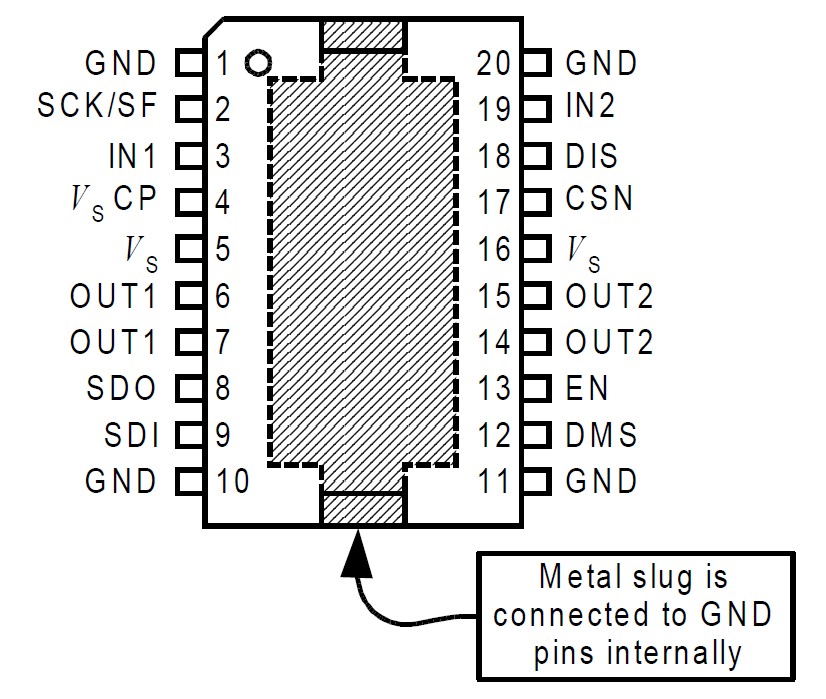

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLE7209-2R |
Infineon Technologies |
Motor / Motion / Ignition Controllers & Drivers 7A H-Bridge 150mA DC-MOTORAPPS |
Data Sheet |
Negotiable |
|
||||||||||
